Waterproof Smd Led Video Wall Custom Shape Led Screen P3 P8 P10

Place of Origin : Guangdong, China

Model Number : DOOH

Brand Name : Longvision

Packaging Details : wooden/carton case

Supply Ability : 3000 Square Meter/Square Meters per Month

MOQ : 2 Square Meters

Price : negotiable

Certification : CE, ROHS, UL, FCC

Payment Terms : T/T

Delivery Time : 7-20 work days

Application : outdoor advertisement

Color : black or white

Panel Size : 960MM*960MM

Pixel Pitch : P3 P4 P5 P6 P8 P10

Material : aluminum or iron

Module size : 320*160mm/160*160mm

Panel size : 960x960/1280x960mm

Brightness : 6500nits

Refresh rate : 1920~3840Hz

Installation : Front and rear

Waterproof : IP 65

Contact Now

Product Features
1. New Mask Design: making the light of LED achieve non-reflection, ensuring better visual effect of the screen
2. Galvanizing And Phosphating High Temperature Spraying Tech: greatly improving the anti-rust function
3. Anti - ultraviolet, anti - deformation module kit, flat screen body does not deformation
Product Parameters
Item Parameter
Pixel Pitch 6mm
Pixel Configuration 1R1G1B / R:G:B=3:6:1
LED Lamp Full color
Density 27777dot/m2
Module Size 192*192mm
Module Thickness 17mm
Module Weight 370g
Port Type HUB-75D/B
Cabinet Size Customized
Brightness ≥6500cd/m²
View Angle ≥120°(Vertical),≥140°(Horizontal)
Best View Distance 6-100m
Frame Frequency ≥60Hz
Refresh Rate ≥1920Hz
Scan Mode 1/8Scan
Lifespan >100,000(Hrs)
Max. power consumption 950W/m2
Ave. power consumption 320W/m2
Operation Temperature -25℃~+50℃
Working Humidity 10%~98%RH
Storage Temperature -40℃~+80℃
Working Voltage 100~240V
Maintenance Mode Front service or Rear service
IP Grade IP65
Product Discription

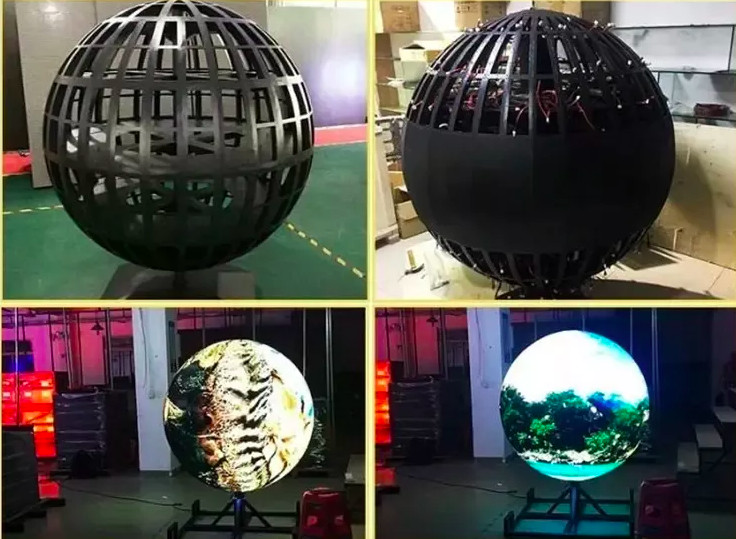

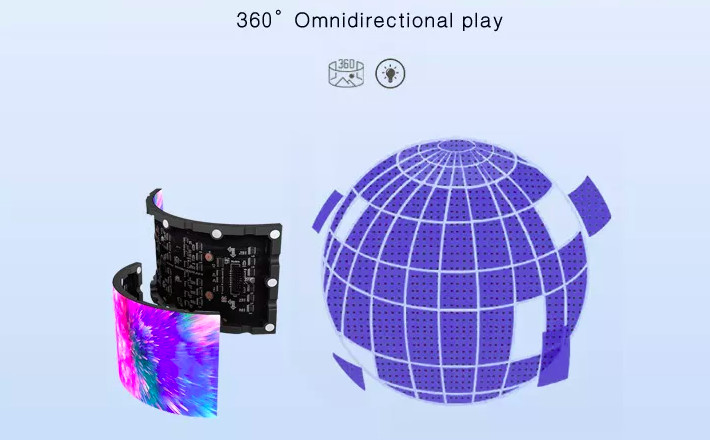

Soft materials ,can realize the radian of S-shape,circle ,arc- shaped , both Horizontal and vertical can be rolled up,meet the requirements of creative stage Optional brightness and high refresh rate: Optional Brightnes 1000nit or 4000nit , to meet the requirements of indoor and outdoor high brightness display effect Up to 40% transparent rate ,to ensure the light-through ,smoke-through ,sound-through request High refresh rate ≥3840Hz,very stable image.
Waterproof Smd Led Video Wall Custom Shape Led Screen P3 P8 P10Waterproof Smd Led Video Wall Custom Shape Led Screen P3 P8 P10

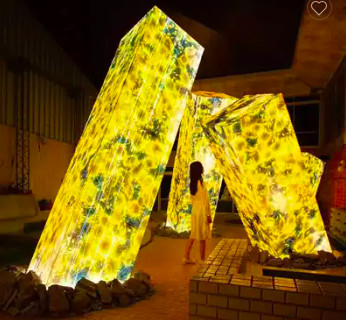

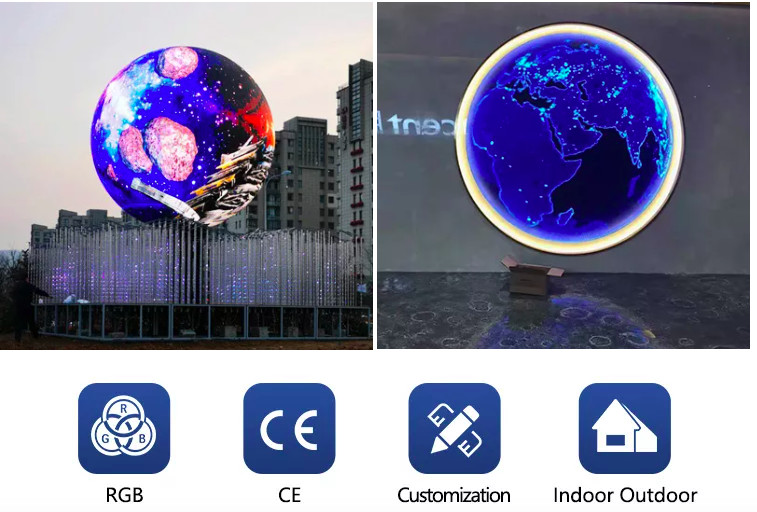

Application
Waterproof Smd Led Video Wall Custom Shape Led Screen P3 P8 P10Waterproof Smd Led Video Wall Custom Shape Led Screen P3 P8 P10
FAQ

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month. 8 modernized dust-free and static-free production lines, 6 new YAMAHA and PANASONIC high speed SMT machines, 2 large leadless reflow oven,250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock,10-15 days for the new production led finished screen according to the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.But you are willing to pay extra money for after sales and adopt industry top quality material, we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
